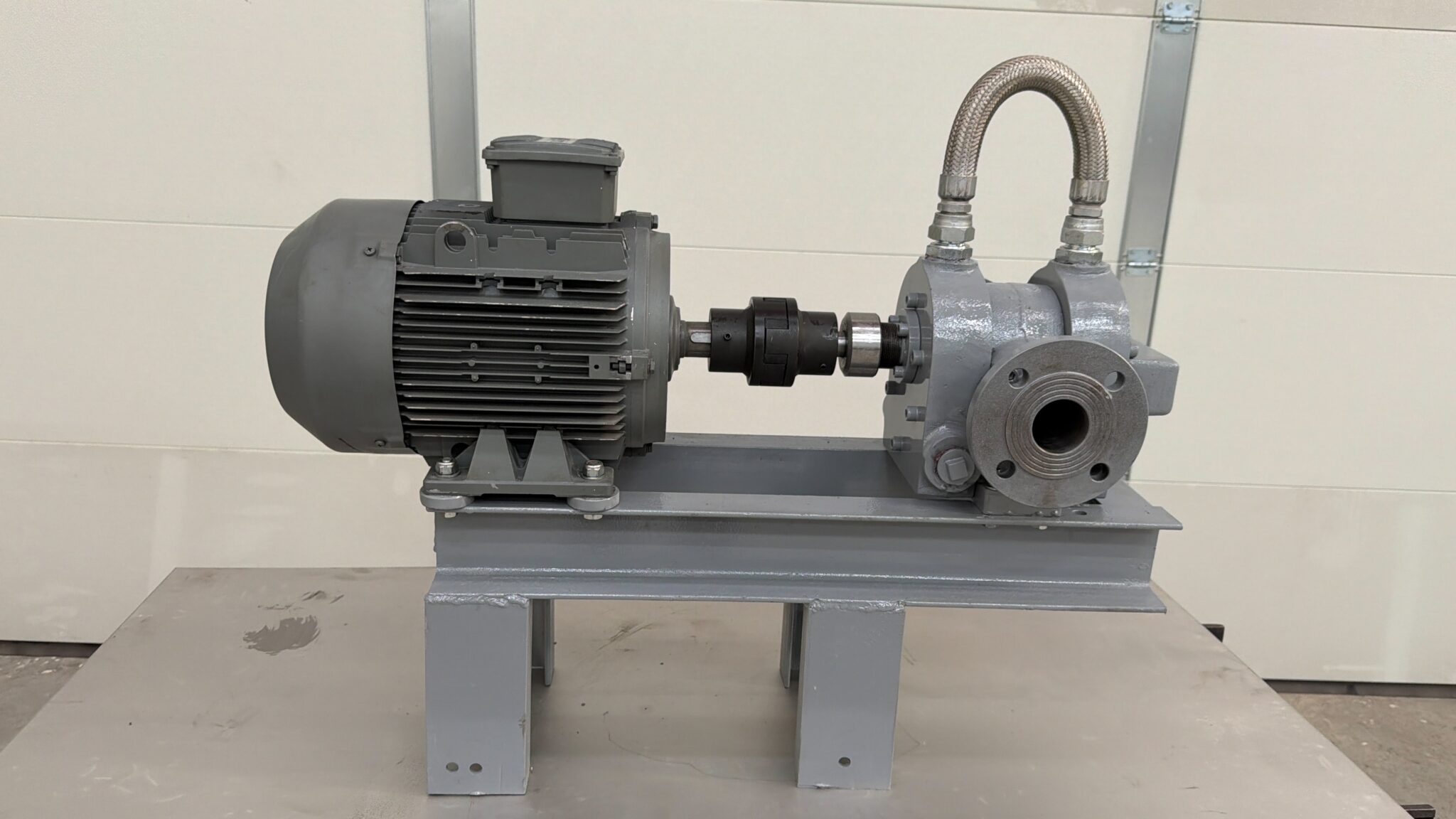

Bitumen Pump
At Alfamix Asfalt, we can meet the spare parts, overhaul, maintenance, and equipment needs of all types and brands of plants.
At Alfamix Asfalt, based on our 50 years of experience, we manufacture long-lasting bitumen pumps for use in asphalt production facilities, bitumen storage facilities, and anywhere bitumen transfer is needed.
- Quiet, herringbone gear design for maximum efficiency and flow
- Thermal oil or electrically heated systems
- Pump options in 2”, 2.5”, 3”, and 4” sizes
- Optional mechanical seal or soft packing
- Heat resistant up to 300°C
- Capacity options up to 50 m³/h
- Pressure resistance up to 30 bar
- Overpressure safety valve
- Bidirectional suction and discharge capability
- Direct-coupled or belt-pulley drive
- Cast iron body, bronze bearings.

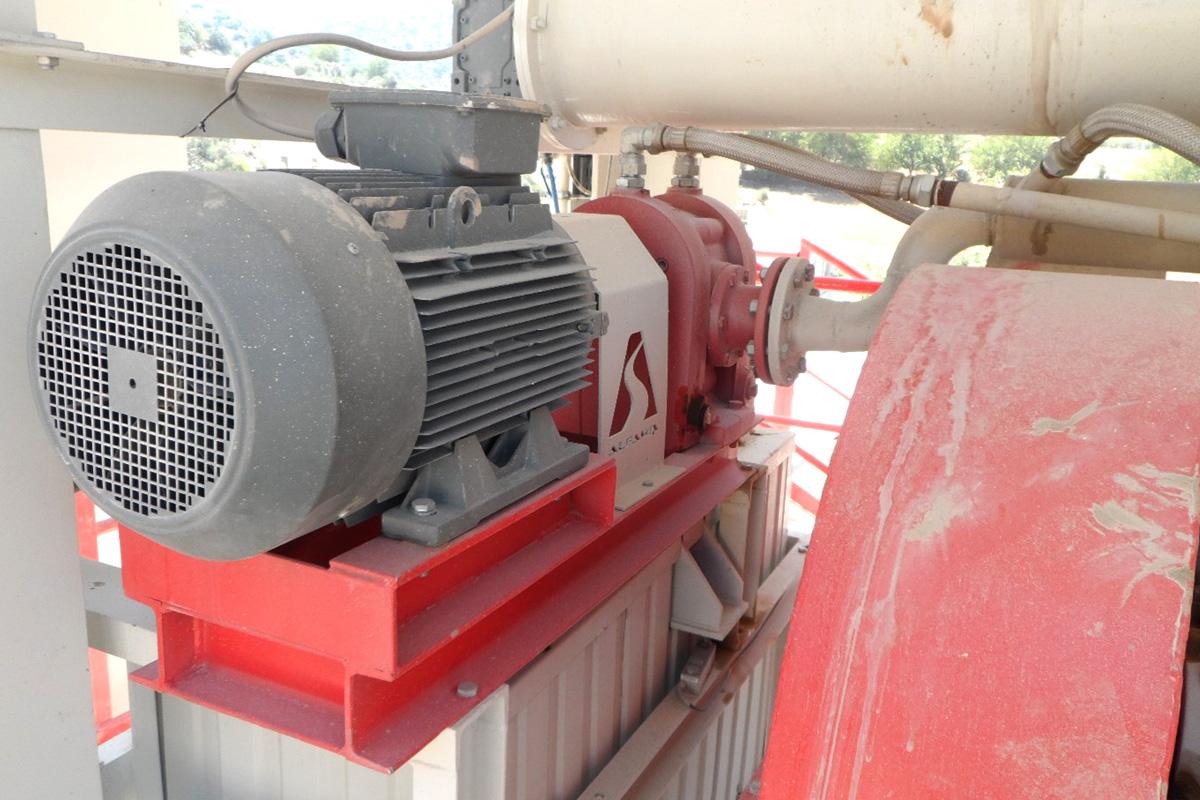

One of the most critical pieces of equipment in asphalt production facilities is the Asphalt Bitumen Pump. Due to the high temperature and viscosity of bitumen, transferring bitumen safely and in the correct amount is vital during asphalt production. The Asphalt Bitumen Pump both maintains production quality and increases occupational safety in this process. Properly selected and regularly maintained bitumen pumps minimize production interruptions and ensure efficient plant operation.
What is an Asphalt Bitumen Pump?
An Asphalt Bitumen Pump is a specially designed pump system that transfers hot and thick bitumen from the bitumen tanks to mixing systems or other tanks. These pumps are selected according to the bitumen’s viscosity and production capacity. Typically, gear pumps, piston pumps, or plunger-type pumps are preferred. Each pump type meets different capacity and pressure requirements.
Advantages of Asphalt Bitumen Pumps
Using a professional Asphalt Bitumen Pump offers many advantages in asphalt production:
Precision Dosing: The pump precisely measures the amount of bitumen and ensures proper transfer.
Uninterrupted Production: High-capacity pump systems enable continuous production line operation.
Energy and Time Savings: Automatic control systems prevent unnecessary bitumen loss and reduce energy consumption.
Occupational Safety: Closed systems and accurate pressure control protect operators from the risk of hot bitumen.
Durability and Longevity: High-quality materials and special design ensure trouble-free operation of the pump for many years.
How Does an Asphalt Bitumen Pump Work?
Bitumen pumps take hot bitumen from the bitumen tank and transfer it to the mixer or silo tank. Gear or piston systems ensure a continuous and controlled flow of bitumen. Modern Asphalt Bitumen Pump systems are generally integrated with an automation panel and provide temperature, pressure, and flow control. This increases production efficiency and minimizes material loss.
The Importance of Correct Pump Selection
Incorrect pump selection in asphalt production facilities can lead to production interruptions and increased costs. Points to consider when choosing an Asphalt Bitumen Pump are as follows:
Bitumen temperature and viscosity
Daily production capacity
Pressure and flow requirements
Durable materials and sealing elements
Compatibility with the automation and control system
Choosing the right pump improves plant performance and reduces maintenance costs.
